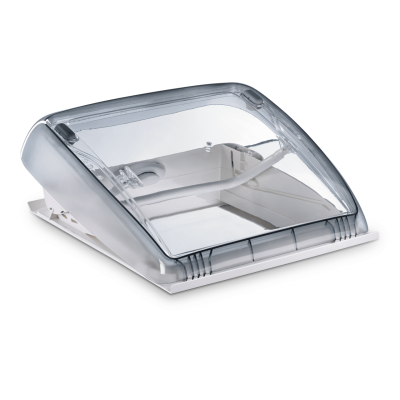

Dometic Mini Heki Style 400x400mm Rooflight 25-42mm With ventilation
Product Code: 9620008619
Specially designed for installation in standard-sized apertures (400 x 400mm), this small roof light ensures maximum light entry.
• Maximum opening position 50 degrees mini heki plus (roof thickness 25-42mm) with fixed ventilation.
• Easy adjustment with operating lever.
• Inner frame with blind and flynet.
• Opens in 3 positions.
• Dimensions: dimensions product depth 520 mm
• Dimensions product width 535 mm
• Dimensions ordered width 400 mm
• Dimensions ordered height 400 mm
• Dimensions opening width 384 mm
• Dimensions opening height 364 mm
• Net weight 3.3 kg
• Standard mount. material thickness min 42 mm
• Possible material thickness min 25 mm
• Possible material thickness max 41 mm
• Cut out width 400.00 mm
Materials and Dimensions
Technical Information
SKU: 9620008619
Barcode: 4015704239201
Brand: Dometic
