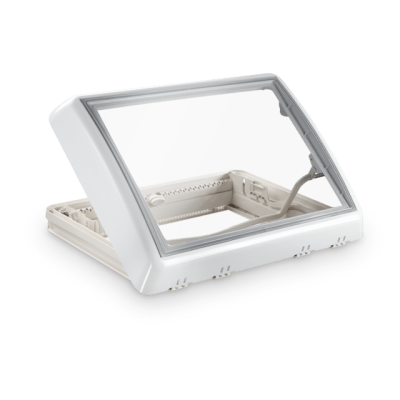

Dometic Midi Heki 700x500 Lever rooflight with forced ventilation
Product Code: 9620008623
Features:
• separately adjustable darkening and fly screens
• well insulated dome with double acrylic glazing
• improved aerodynamics reduce by 20 %
• hinge and lock integrated into frame for improved safety and mechanical reliability
• opens to three positions: fully open, half-open and bad-weather position
• with forced ventilation
• modern design for stylish interior and exterior appearance
• dimensions and technical specification: imensions
• dimensions product depth 617 mm
• dimensions product width 846 mm
• dimensions ordered width 700 mm
• dimensions ordered height 500 mm
• dimensions opening width 585 mm
• dimensions opening height 404 mm
• net weight 8,2 kg
• standard mount. material thickness 1 min 30 mm
• standard mount. material thickness 1 max 34 mm
• possible material thickness 1 min 25 mm
• possible material thickness 1 max 29 mm
• cut out height 500.00 mm
• cut out width 500.00 mm
• max opening angle is 45 degress
• 3 fixed positions
Materials and Dimensions
Technical Information
SKU: 9620008623
Barcode: 4015704267631
Brand: Dometic
