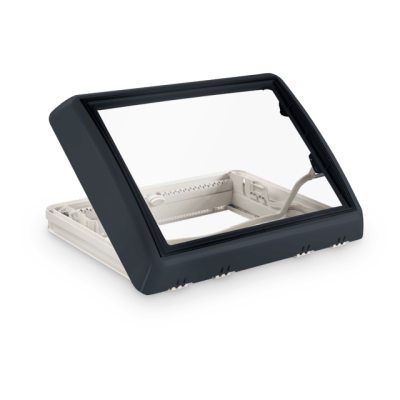

Dometic Grey Midi Heki 700x500 Lever Rooflight with forced ventilation

Dometic Grey Midi Heki 700x500 Lever Rooflight with forced ventilation

Product Code: 9620008629

View Specification
Login to see Trade Prices
This dometic midi heki style is an advanced version of dometic's mid-sized roof windows. it features a newly designed dome with double acrylic glazing for enhanced insulation and better visual integration. with its improved design, the midi heki style is both easier to clean and generates up to 20 % (3 db) less noise thanks to improved aerodynamics. an inner frame with separately adjustable darkening blind and fly screen conveniently keep sunlight and insects out of the vehicle
• Dimensions product depth 617 mm
• Dimensions product height 617 mm
• Dimensions product width 846 mm
• Dimensions ordered width 700 mm
• Dimensions ordered height 500 mm
• Net weight 8.40 kg
• Dimensions opening width 585 mm
• Dimensions opening height 404 mm
• Standard mount. material thickness 1 min 30 mm
• Standard mount. material thickness 1 max 34 mm
• Possible material thickness 1 min 25 mm
• Possible material thickness 1 max 29 mm
• Ventilation opening 150.00 cm2
• Cut out height 500.00 mm
• Cut out width 700.00 mm
Call Us Email Us

Materials and Dimensions

Technical Information

SKU: 9620008629

Barcode: 4015704272802

Brand: Dometic
